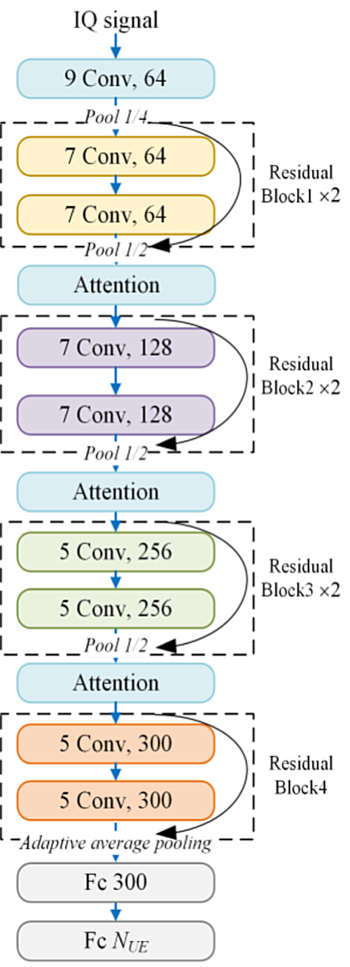

Table 4.

Structure and parameters of attention

Network Structure Layer Kernel parameters Output dimension
Input (None, 2, Ns)

Convolution/BN/ReLU (64, 9) (None, 64, Ns)

Max pooling (4) (None, 64, Ns/4)

Residual block1 (64, 7) (None, 64, Ns/4)

Max pooling (2) (None, 64, Ns/8)

Residual block1 (64, 7) (None, 64, Ns/8)

Max pooling (2) (None, 64, Ns/16)

Attention (64) (None, 64, Ns/16)

Residual block2 (128, 7) (None, 128, Ns/16)

Max pooling (2) (None, 128, Ns/32)

Residual block2 (128, 7) (None, 128, Ns/32)

Max pooling (2) (None, 128, Ns/64)

Attention (128) (None, 128, Ns/16)

Residual block3 (256, 5) (None, 256, Ns/64)

Max pooling (2) (None, 256, Ns/128)

Residual block3 (256, 5) (None, 256, Ns/128)

Max pooling (2) (None, 256, Ns/256)

Attention (256) (None, 256, Ns/256)

Residual block4 (300, 5) (None, 300, Ns/256)

Adaptive average pooling (None, 300)

Fc (None, NUE)
